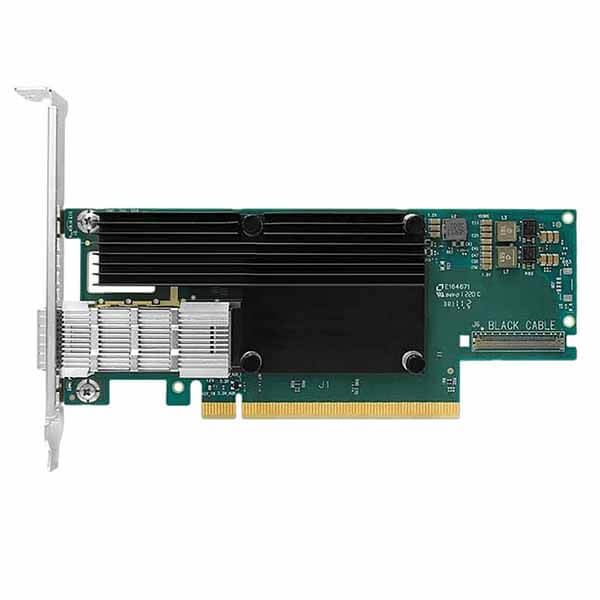

Mellanox/NVIDIA MCX653105A-HDAT ConnectX-6 VPI Adapter Card HDR/200GbE

Specifications:

• Brand Name:- Mellanox/NVIDIA
• Part Number:- MCX653105A-HDAT
• Product Category:- Adapter Cards
• Ports:- Single
• Link Rate:- 16 GT/s
• Max Speed:- HDR and 200Gb/s
• Host Interface:- PCIe 4.0×16
• Interface Type:- QSFP56
• RoHS Compliant:- Yes
• SR-IOV:- Yes
• RDMA:- Yes
• Max. Power Consumption:- 19.3W
• Operating Temperature:- 0 °C to 55 °C
• Storage Temperature:- -40 °C to 70 °C
• Product Dimensions (LxW):- 6.6 x 2.71 Inches /167.65 x 68.90mm
• Weight:- 0.50 Kg / 1.1 Lbs
• Shipping Dimensions(LxWxH):- 8 x 4 x 2 Inches/20.3 x 10.2 x 5.08 Cm
• If you need a Mellanox MCX416A-BCAT, We Have

We kept stock in New, Used, and Refurbished condition.

MCX653105A-HDAT

MCX653105A-HDAT Mellanox ConnectX-6 VPI Adapter Card is capable of data transfer for which the rate is HDR and 200Gbps. It uses PCIe 4. 0 x16 for fast and perfect connection in addition to necessitating QSFP56 interface types. The MCX653105A-HDAT card is used to connect with Mellanox switches such as SN2100, SN2700, SN3000, SN3700, and SN4000 series, making it ideal for data centers that require low latency and high-performance network connections.The card uses RoHS standards for its usage is environmentally safe, and has SR-IOV to help with resource partitioning.

The abbreviation “HDAT” in the product name means “HDR Data Accelerator Technology,” which suggests the product possesses enhanced data acceleration features. It consumes up to 19.3W of power that makes it energy-saving while delivering high performance. The card can withstand temperatures up to 55 degree Celsius and operating at conditions as low as 0 degree Celsius.

FAQs

What is the best speed for MCX653105A-HDAT?

That is why it supports HDR at a peak rate of 200 Gbps.

What interface is used in the MCX653105A-HDAT?

It incorporates the high speed QSFP56 interface.

Is the MCX653105A-HDAT RoHS compliant?

Yes, it is RoHS-compliant.
